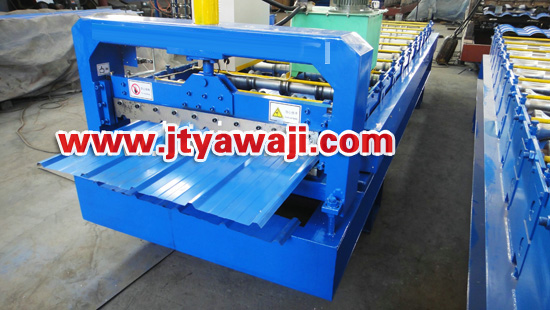

Wall panels forming machine 15-225-900 type

Our products are widely used in various industrial plants, housing, production and warehouse roof and wall beautiful and durable.

It consists of feed import platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts.

Optional equipment ordinary discharge machine, hydraulic discharge machine, automatic feeding machines chop.

The main technical parameters

1. Installation size: 9000mm × 1700mm × 1600mm

2 molding channel number: 10

3. Roller material: 45 # steel

4 rollers plating thickness: 0.05mm

5 Cutter Material:. Cr12

6 Forming speed:. 9-10m / min

7 Electronic Control System: PLC controlled industrial computer

8 Drive: Anti-knife accurate counting function (optional)

9 Host Power:. 3kw

10. Hydraulic station power: 3kw

11. Plate thickness: 0.4-0.7mm

12. Expand the plate width: 1000mm
