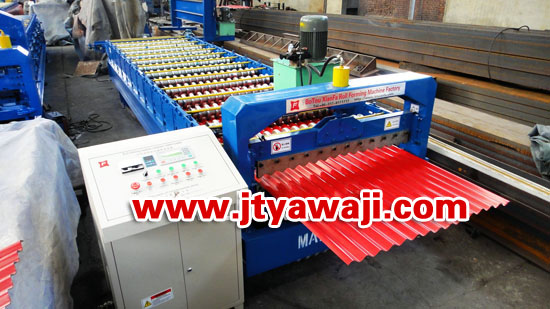

Corrugated roofing tile machine type 19-76-1057

      Our products are widely used in various industrial plants, housing, warehouses and markets shed curved roof and make beautiful and durable.

It consists of feed import platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts.

Optional equipment ordinary discharge machine, hydraulic discharge machine, automatic feeding machines chop.

1. Device Configuration

Uncoiler forming host hydraulic cutter electric control system of the hydraulic system of rack

2. Technical parameters

Installation size: 10000mm × 1800mm × 1600mm

1> in the manual tensioning uncoilers

. a mounted volume inside diameter: 500mm-508mm

. b maximum loading roll width: 1250mm

. c maximum loading weight: 5000kg

2> Forming host

a roller Rows: 13 rows

. b Spindle Material: 45 # steel shaft diameter 70mm modulation processing

c Main motor power:. 4kw

d production speed:. 8-10m / min

. e roll hard chrome plated thickness: 0.05mm

. f thickness of the material: 0.3-0.7mm

g suitable raw material width:. 1250 / 1000mm

3> Hydraulic Cutter

a blade material:. Cr12 quenching 60-62 ℃

. b cutting system: advanced hydraulic drive after forming automatic cut-foot deformation without waste

c power:. 4KW

4> electronic control system

a screen: the use of text-screen display (touch screen optional)

b host computer:. PLC control

c operating modes: manual / automatic operation mode can switch to stop cutting higher safety factor

d converter: Oerlikon (optional)
