Wall panels tile press plate 10 -130-910 type (backpressure)

date:2015-01-31 16:58 Click on the: Time

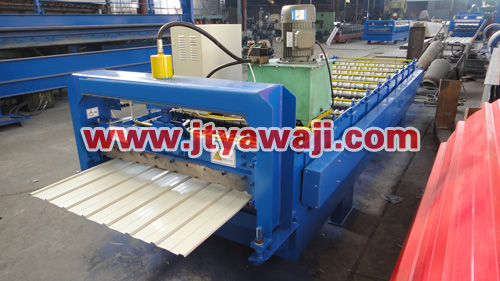

10-130-910 wall panels forming machine type (backpressure)



      Our products are widely used in various industrial plants, housing, production and warehouse wall beautiful and durable.

It consists of feed import platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts.

Optional equipment ordinary discharge machine, hydraulic discharge machine, automatic feeding machines chop.



1. Device Configuration

Uncoiler forming host hydraulic cutter electric control system of the hydraulic system of rack

2. Technical parameters

Installation dimensions: 9000mm × 1600mm × 1500mm

1> in the manual tensioning uncoilers

. a mounted volume inside diameter: 500mm-508mm

. b maximum loading roll width: 1000-1250mm

. c maximum loading weight: 5000kg

2> Forming host

a roller Rows: 10 row

. b Spindle Material: 45 # steel shaft diameter 70mm modulation processing

c Main motor power:. 3kw

d production speed:. 8-10m / min

. e roll hard chrome plated thickness: 0.05mm

. f thickness of the material: 0.3-0.7mm

. g suitable material width: 1000mm

3> Hydraulic Cutter

a blade material:. Cr12 quenching 60-62 ℃

. b cutting system: advanced hydraulic drive after forming automatic cut-foot deformation without waste

c power:. 3KW

4> electronic control system

a screen: the use of text-screen display (touch screen optional)

b host computer: Delta PLC control

c operating modes: manual / automatic operation mode can switch to stop cutting higher safety factor

d converter: Oerlikon (optional)
