Double glazed tile machine type 900/1000

date:2015-01-31 16:25 Click on the: Time

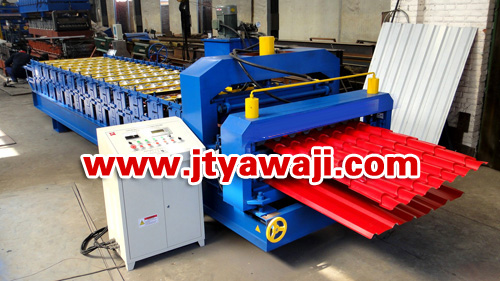

Double glazed tile machine type 900/1000



The latest combination of double-glazed and veneer tile press, reasonable structure, beautiful appearance.

It consists of feed import platform, forming the host, glazed tile molding equipment, cutting equipment, hydraulic station, computer control system composed of several parts.

Simple conversion operation on the lower, just by switching button on the cabinet to convert each layer separately control, power can be controlled separately for each layer through a clutch.

Optional equipment ordinary discharge machine, hydraulic discharge machine.

Upper and lower models according to customer requirements.



The main technical parameters

1. Installation size: 10500mm × 1800mm × 1700mm

2 molding channel number: 12/11 Road

3. Roller material: 45 # steel

4 rollers plating thickness: 0.05mm

5 Cutter Material:. Cr12

6 Forming speed:. 3m / 10m / min.

7 Electronic Control System: Industrial computer PLC frequency control

8 Host Power:. 4KW

9. Hydraulic station power: 4KW

10. Plate thickness: 0.4-0.6mm

11. Expand the plate width: 1200mm
