Corrugated roofing tile machine type 13-65-850

date:2015-01-31 15:54 Click on the: Time

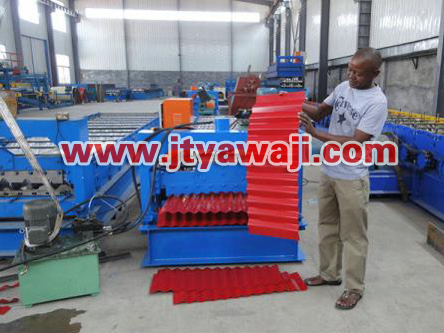

Corrugated roofing tile machine type 13-65-850
Our products are widely used in various industrial plants, housing, warehouses and markets shed curved roof and make beautiful and durable.
It consists of feed import platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts.
Optional equipment ordinary discharge machine, hydraulic discharge machine, automatic feeding machines chop.

The main technical parameters
1. Installation size: 9000mm × 1700mm × 1600mm
2 molding channel number: 9
3. Roller material: 45 # steel / cast iron wheel
4 rollers plating thickness: 0.05mm
5 Cutter Material:. Cr12
6 Forming speed:. 9-10m / min
7 Electronic Control System: PLC controlled industrial computer
8 Drive: Anti-knife accurate counting function (optional)
9 Host Power:. 3kw
10. Hydraulic station power: 3kw
11. Plate thickness: 0.4-0.7mm
12. Expand the plate width: 1000mm
